AVA UIN-K Wireless Tattoo Pen

Features;

Material Aircraft Aluminum

Motor Brushless motor

System Direct drive system

Stroke 2.5-5.0mm Internal adjustable stroke

5 Options（2.5,3.5,4.0,4.5,5.0）

How to Adiust the Bearing: 1. Loosen the bearing screw using a 1.3mm hex screwdriver.

2. Adjust the bearing scale with a 1.3mm flat-head screwdriver.

3. After achieving the desired setting, tighten the screw securely.

Motor Speed 10500(rpm)

Timing Function 1：It will begin timing when the UniK is opened, and retain the timing data even after the battery is changed.

2：Timing reset by holding both the "+" and "-" buttons for 3s

Memory function H mode:Press m button to switch to M1 or M2 memory gear.

L mode:Press m button to switch to Mi or M2 memory gear.

(The yellow font shows the current working mode and memory gear.）

Nomal Mode

Voltage adjustment Two adjustment methods：

1,Press "+" or "-" button, increase or decrease the voltage by 0.1V

2, Hold "+" or "-" button, increase or decrease the voltage by 1V

Torque mode Torque mode:Double click M button, switch to Torque mode

Different power at the same frequency. The power of high torque will be stronger.

1.High Torque mode:High-torque motor ensures consistent penetration forcrisp line work

2.Low Torque mode:Lower torque output provides smoother needle actionfor gradient shading

Screen 1.47inch ， OLED HD Color screen

Battery 18500 Lithium-ion， 1600mAh

Battery Voltage 3.7V

Power Intake 5w

Needle Protrusion 0-5mm

Charging Input: 5V/2A

Pen Net Weight 218g

Pen Size 127mm* 32mm

Grip Diameter 39mm and 32mm

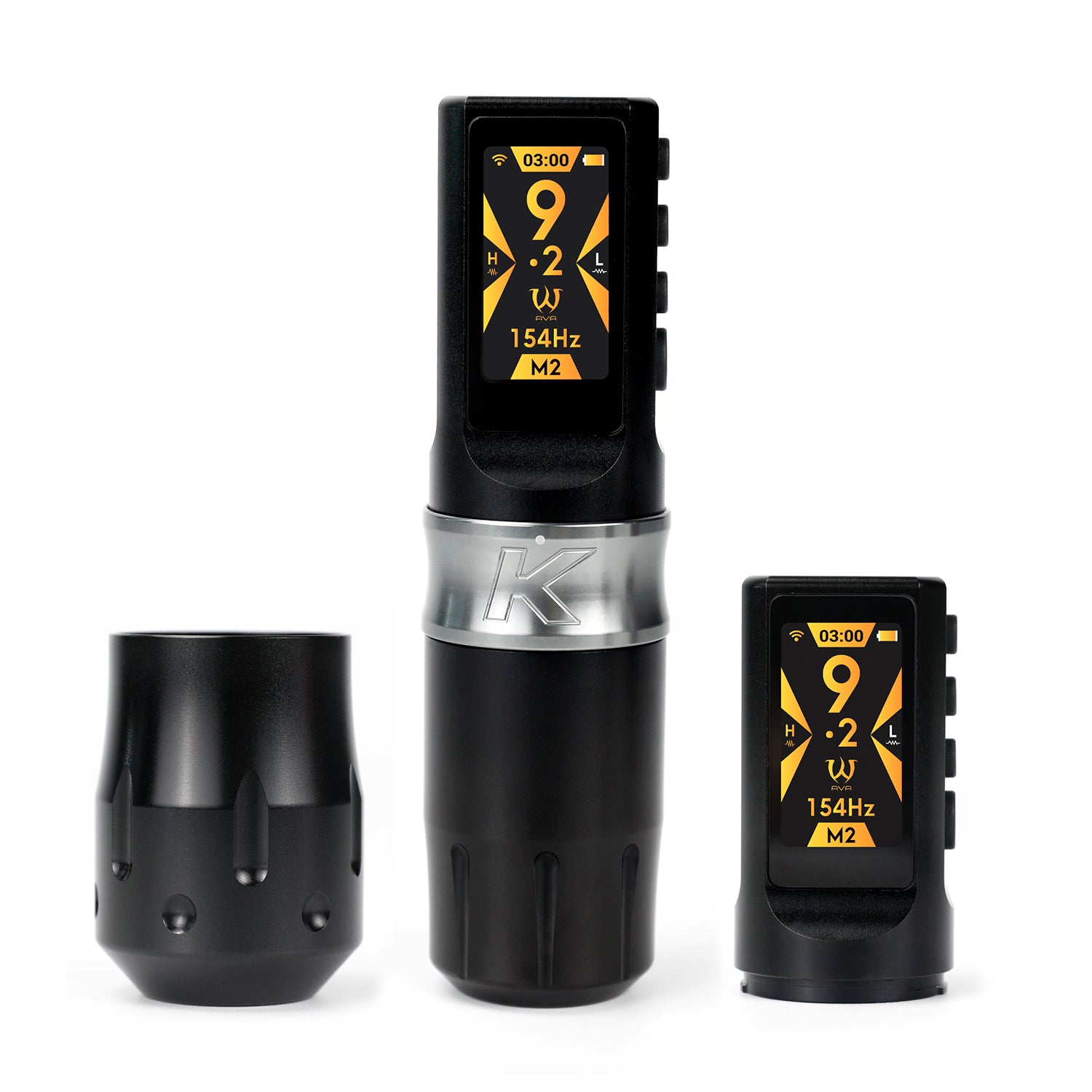

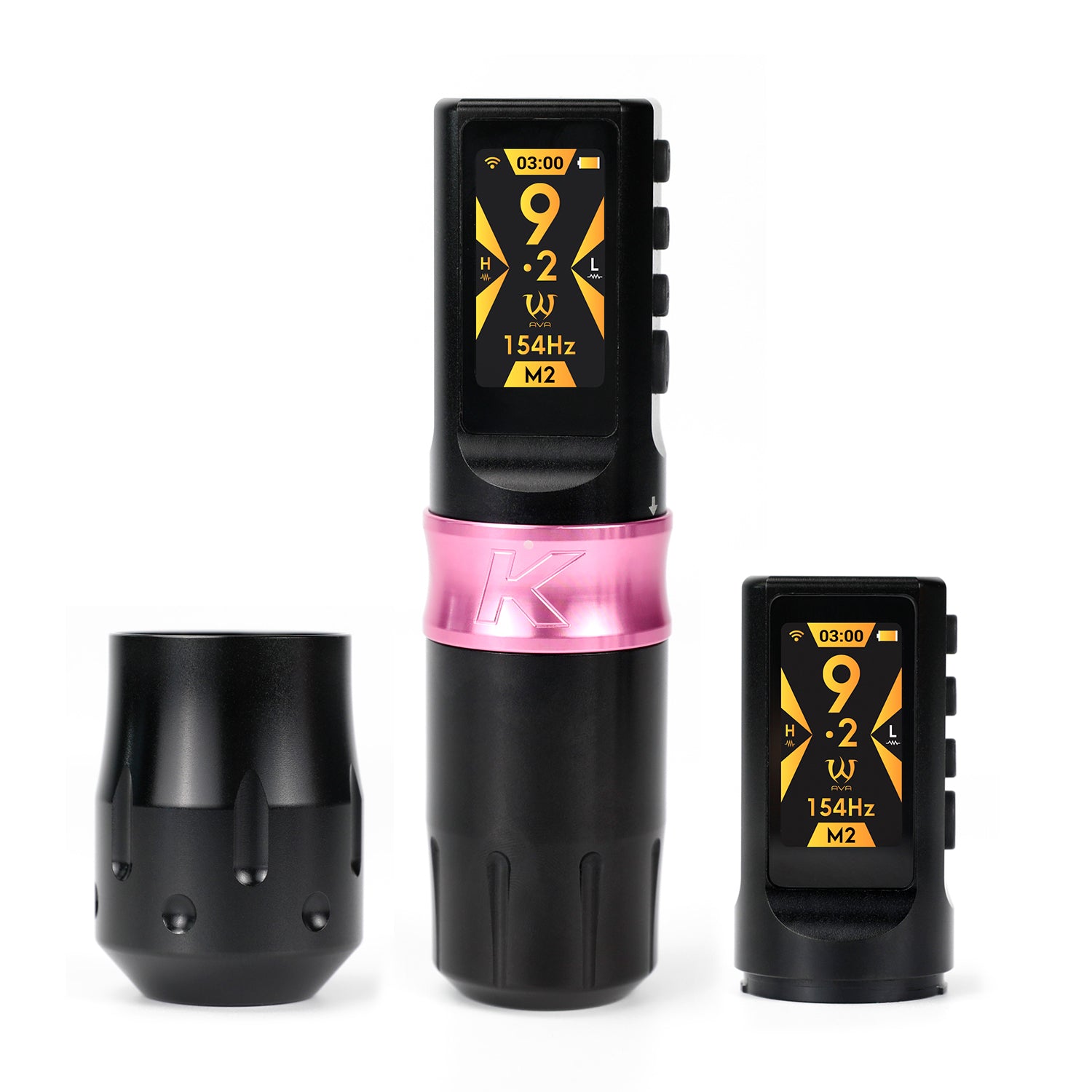

Include 1 machine, 1 extra battery, 1 extra grip, 1 charging head, 1 data cable, 1 flat-head screwdriver, 1 hexagonal wrench, 1 travel bag, 1 outer box, 1 instruction manual

Seling Points 1.The internal stroke is adjustable from 2.5 to 5.0mm, a unique feature. It can be set to 2.5mm, 3.5mm, 4.0mm, 4.5mm, or 5.0mm.



2.Equipped with two built-in 18500 battery packs for longer working hours.



3.Adopts a direct-drive system with low wear and more direct power transmission.



4.The OLED HD color screen displays Bluetooth connection status, battery level, working voltage, frequency, and working time



5.Memory function with four positions, H: M1,M2 ＆L: M1,M2



6.Two modes:

A：High torque mode(H)：motor ensures consistent penetration for crisp line work

B：Low torque mode(L): output provides smoother needle action for gradient shading



7.Equipped with an extra grip: adapted to the preferences of different tattoo artists



8.Bluetooth function：Can be connected to AVA Bluetooth foot pedal for Bluetooth control



9.OLED high-definition screen displays the machine's working status, allowing for better observation and control of the machine



10.It adopts a brushless motor, providing stronger power, longer service life and higher accuracy.



11.Internal adjustable stroke, 1pc UNIK meets many needs during the tattoo
